AIR Handling UNITS

GAS HEATER - EG

In a gas heater with indirect heating, the owing air does not come into contact with the ame.
The air is heated using convection from the furnace tubes containing hot gases from the
combustion process. The exchanger consists of a combustion chamber and an exchanger
equipped with a system of tubes. The combustion gas is directed through these tubes into the
chimney. Gas heaters can operate periodically with burner turning off, or in a continuous
mode at power load of the burner. If the burner operates periodically - when the combustion
chamber is cooled - stream condensation takes place.

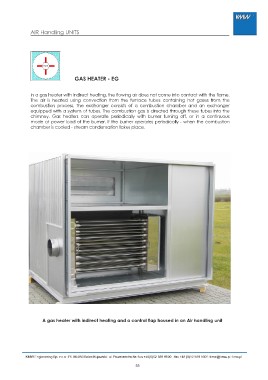

A gas heater with indirect heating and a control ap housed in an Air handling unit
