AIR Handling UNITS

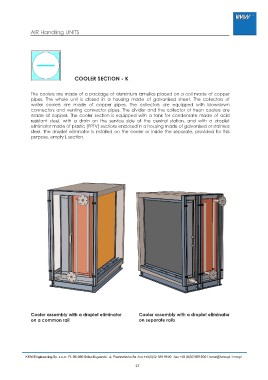

COOLER SECTION - K

The coolers are made of a package of aluminium lamellas placed on a coil made of copper
pipes. The whole unit is closed in a housing made of galvanised sheet. The collectors of
water coolers are made of copper pipes. The collectors are equipped with blowdown
connectors and venting connector pipes. The divider and the collector of freon coolers are
made of copper. The cooler section is equipped with a tank for condensate made of acid
resistant steel, with a drain on the service side of the central station, and with a droplet
eliminator made of plastic (PPTV) sections enclosed in a housing made of galvanised or stainless
steel. The droplet eliminator is installed on the cooler or inside the separate, provided for this
purpose, empty L section.

Cooler assembly with a droplet eliminator Cooler assembly with a droplet eliminator
on a common rail on separate rails
