ROUND VENTILATION DUCTS

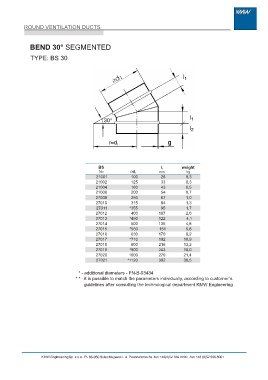

BEND 30° SEGMENTED

TYPE: BS 30

BS od1 l1 weight
No 100 mm kg
21001 125 28 0,3
21002 160 33 0,3
21004 200 43 0,5
21006 250 54 0,7
27008 315
27010 *355 67 1,0
400 84 1,3
27012 *450 95 1,7
27013 500 107 2,0
27014 *560 122 4,1
27015 630 135 4,8
27016 *710 151 5,8
27017 800 170 8,2
27018 *900 192 10,9
27019 1000 216 13,2
27020 243 18,0
27021 270 21,4
302 30,5

* - additional diameters - PN-B-03434
* * - it is possible to match the parameters individually, according to customer`s

guidelines after consulting the technological department KMW Engineering
