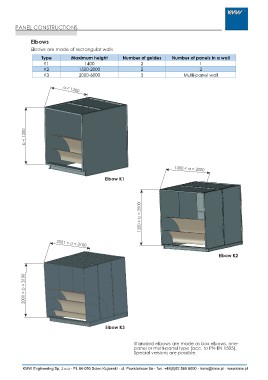

PANEL CONSTRUCTIONS
Elbows
Elbows are made of rectangular walls
Type Maximum height Number of guides Number of panels in a wall
K1 1400 2 1
K2 2 2
K3 1500-2000 3
2000-6000 Multi-panel wall
a < 1300
b < 1300
1300 < a < 2000
Elbow K1
1300 < b < 2000
2001 < a < 3100
Elbow K2
2001 < b < 3100
Elbow K3
Standard elbows are made as box elbows, one-
panel or multi-panel type (acc. to PN-EN 1505).
Special versions are possible.
