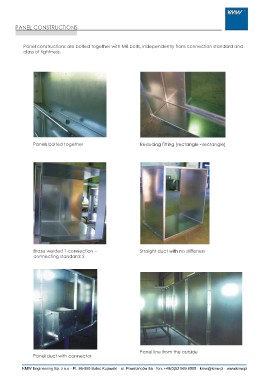

PANEL CONSTRUCTIONS

Panel constructions are bolted together with M8 bolts, independently from connection standard and
class of tightness.

Panels bolted together Reducing fitting (rectangle - rectangle)

Braze welded T-connection – Straight duct with no stiffeners
connecting standard: S

Panel duct with connector Panel line from the outside
