P. 8

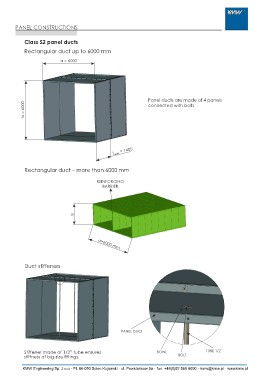

PANEL CONSTRUCTIONS
Class S2 panel ducts
Rectangular duct up to 6000 mm
a = 6000
b = 6000 Panel ducts are made of 4 panels
connected with bolts
LMAX = 1400
Rectangular duct – more than 6000 mm
REINFORCING
BARRIER
b
a>6000 mm
Duct stiffeners
PANEL DUCT
Stiffener made of 1/2” tube ensures BOWL TUBE 1/2"
stiffness of big-size fittings.
BOLT
