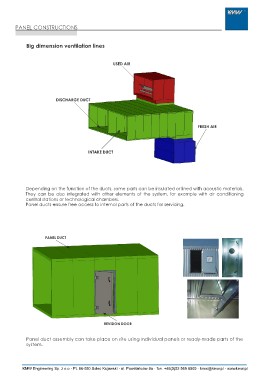

PANEL CONSTRUCTIONS
Big dimension ventilation lines
USED AIR
DISCHARGE DUCT FRESH AIR
INTAKE DUCT
Depending on the function of the ducts, some parts can be insulated or lined with acoustic materials.
They can be also integrated with other elements of the system, for example with air conditioning
central stations or technological chambers.
Panel ducts ensure free access to internal parts of the ducts for servicing.
PANEL DUCT
REVISION DOOR
Panel duct assembly can take place on site using individual panels or ready-made parts of the
system.
