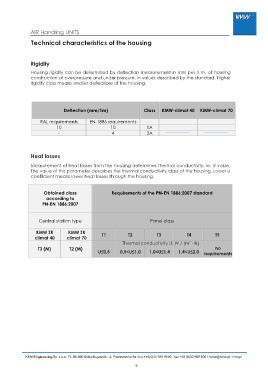

Page 10 - Air Handling Units.cdr

AIR Handling UNITS

Technical characteristics of the housing

Rigidity

Housing rigidity can be determined by deection measurement in mm per 1 m. of housing
construction at overpressure and under pressure, in values described by the standard. Higher
rigidity class means smaller deections of the housing.

Deflection (mm/1m) Class KMW-climat 40 KMW-climat 70

RAL requirements EN-1886 requirements 1A
10 10 2A
- 4

Heat losses

Measurement of heat losses from the housing determines thermal conductivity, ie. U value.
The value of this parameter describes the thermal conductivity class of the housing. Lower U
coefcient means lower heat losses through the housing.

Obtained class Requirements of the PN-EN 1886:2007 standard
according to

PN-EN 1886:2007

Central station type Panel class

KMW ZR KMW ZR T1 T2 T3 T4 T5
climat 40 climat 70 U≤0,5

T3 (M) T2 (M) Thermal conductivity U, W / (m2 · K)
no

0,5<U≤1,0 1,0<U≤1,4 1,4<U≤2,0 requirements
