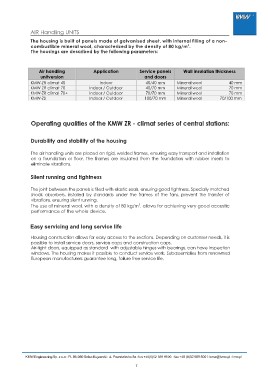

AIR Handling UNITS

The housing is built of panels made of galvanised sheet, with internal lling of a non-
combustible mineral wool, characterized by the density of 80 kg/m3.
The housings are described by the following parameters:

Air handling Application Service panels Wall insulation thickness
unitversion and doors
Indoor Mineral wool 40 mm
KMW-ZR climat 40 Indoor / Outdoor 40/40 mm Mineral wool 70 mm
KMW-ZR climat 70 Indoor / Outdoor 40/70 mm Mineral wool 70 mm
KMW-ZR climat 70+ Indoor / Outdoor 70/70 mm Mineral wool 70/100 mm
KMW-ZS 100/70 mm

Operating qualities of the KMW ZR - climat series of central stations:

Durability and stability of the housing

The air handling units are placed on rigid, welded frames, ensuring easy transport and installation
on a foundation or oor. The frames are insulated from the foundation with rubber inserts to
eliminate vibrations.

Silent running and tightness

The joint between the panels is lled with elastic seals, ensuring good tightness. Specially matched
shock absorbers, installed by standards under the frames of the fans, prevent the transfer of
vibrations, ensuring silent running.
The use of mineral wool, with a density of 80 kg/m3, allows for achieving very good acoustic
performance of the whole device.

Easy servicing and long service life

Housing construction allows for easy access to the sections. Depending on customer needs, it is
possible to install service doors, service caps and construction caps.
Air-tight doors, equipped as standard with adjustable hinges with bearings, can have inspection
windows. The housing makes it possible to conduct service work. Subassemblies from renowned
European manufacturers guarantee long, failure free service life.
