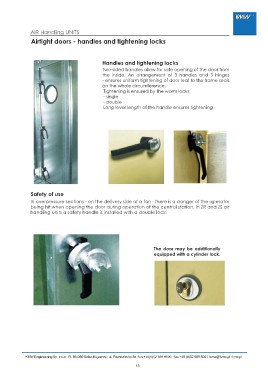

AIR Handling UNITS

Airtight doors - handles and tightening locks

Handles and tightening locks

Two-sided handles allow for safe opening of the door from
the inside. An arrangement of 3 handles and 3 hinges
- ensures uniform tightening of door leaf to the frame seals
on the whole circumference.
Tightening is ensured by the worm locks:
- single
- double
Long lever length of the handle ensures tightening.

Safety of use

In overpressure sections - on the delivery side of a fan - there is a danger of the operator
being hit when opening the door during operation of the central station. In ZR and ZS air
handling units a safety handle is installed with a double lock.

The door may be additionally
equipped with a cylinder lock.
