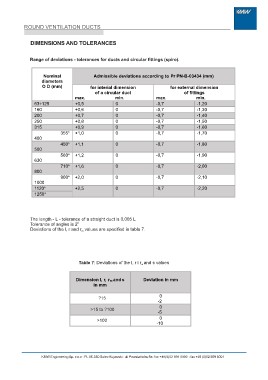

Page 4 - ROUND VENTILATION DUCTS
P. 4

ROUND VENTILATION DUCTS

 Nominal            Admissible deviations according to Pr PN-B-03434 (mm)
diameters
O D (mm)            for interial dimension                       for external dimension
                       of a circular duct
63รท125  355*  max.                  min.                  max.                   min.
160     450*  +0,5                   0                    -0,7                   -1,20
200     560*  +0,6                   0                    -0,7                   -1,30
250     710*  +0,7                   0                    -0,7                   -1,40
315     900*  +0,8                   0                    -0,7                   -1,50
              +0,9                   0                    -0,7                   -1,60
400           +1,0                   0                    -0,7                   -1,70

500           +1,1       0 -0,7 -1,80

630           +1,2       0 -0,7 -1,90

800           +1,6       0 -0,7 -2,00

1000          +2,0       0 -0,7 -2,10
1120*
1250*         +2,5       0 -0,7 -2,20

The length - L - tolerance of a straight duct is 0,005 L
Tolerance of angles is 20

Deviations of the l, r and rm

              Table 7: Deviations of the l, r i rm and s values

              Dimension l, r, rm and s                    Deviation in mm
                         in mm
                                                                    0
                             ?15                                   -2
                       >15 to ?100                                  0
                                                                   -5
                            >100                                    0
                                                                  -10
