AIR Handling UNITS

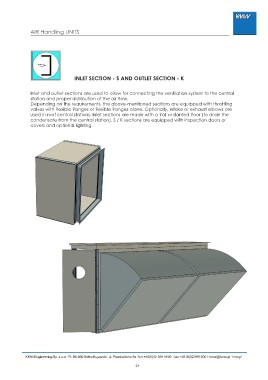

INLET SECTION - S AND OUTLET SECTION - K
Inlet and outlet sections are used to allow for connecting the ventilation system to the central
station and proper distribution of the air ?ow.
Depending on the requirements, the above-mentioned sections are equipped with throttling
valves with ?exible ?anges or ?exible ?anges alone. Optionally, intake or exhaust elbows are
used in roof central stations. Inlet sections are made with a ?at or slanted ?oor (to drain the
condensate from the central station). S / K sections are equipped with inspection doors or
covers and optional lighting.
