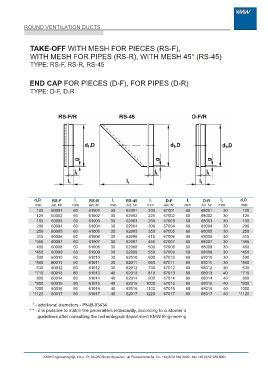

Page 33 - ROUND VENTILATION DUCTS

ROUND VENTILATION DUCTS

TAKE-OFF WITH MESH FOR PIECES (RS-F),
WITH MESH FOR PIPES (RS-R), WITH MESH 45° (RS-45)

END CAP FOR PIECES (D-F), FOR PIPES (D-R)

d1,D RS-F l1 RS-R l1 RS-45 l1 D-F l1 D-R l1 d1,D
mm Art. Nr mm Art. Nr mm Art. Nr mm Art. Nr mm Art. Nr mm mm
68001
100 60001 60 61001 30 62001 200 67001 60 68002 30 100
68003 30 125
125 60002 60 61002 30 62002 225 67002 60 68004 30 160
68005 30 200
160 60003 60 61003 30 62003 260 67003 60 68006 30 250
68007 30 315
200 60004 60 61004 30 62004 300 67004 60 68008 30 *355
68009 30 400
250 60005 60 61005 30 62005 350 67005 60 68010 30 *450
30 500
315 60006 60 61006 30 62006 415 67006 60 68012 30 *560
68013 30 630
*355 60007 60 61007 30 62007 455 67007 60 68014 40 *710
68015 40 800
400 60008 60 61008 30 62008 500 67008 60 68016 40 *900
68017 40 1000
*450 60009 60 61009 30 62009 550 67009 60 40

500 60010 60 61010 30 62010 600 67010 60

*560 60 30 660 60

630 60012 60 61012 30 62012 730 67012 60

*710 60013 80 61013 40 62013 810 67013 80

800 60014 80 61014 40 62014 900 67014 80

*900 60015 80 61015 40 62015 1000 67015 80

1000 60016 80 61016 40 62016 67016 80

60017 80 61017 40 62017 1220 67017 80

* - additional diameters - PN-B-03434
* * - it is possible to match the parameters individually, according to customer`s

guidelines after consulting the technological department KMW Engineering

fon +48(0)52 569 8000
