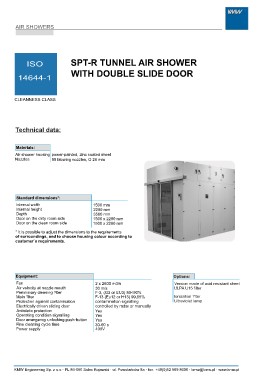

Page 6 - AIR SHOWERS

AIR SHOWERS

ISO WITH DOUBLE SLIDE DOOR
146IS4O4-1
14644-1

CLEANNESS CLASS

Technical data:

Materials:

Air shower housing power-painted, zinc coated sheet

Nozzles 88 blowing nozzles, O 26 mm

Standard dimensions*: 1500 mm
2200 mm
Internal width 3500 mm
Internal height 1500 x 2200 mm
Depth 1500 x 2200 mm
Door on the dirty room side
Door on the clean room side

* It is possible to adjust the dimensions to the requirements
of surroundings, and to choose housing colour according to
customer`s requirements.

Equipment: 2 x 2600 m3/h Options:
30 m/s
Fan F-3, (G3 or EU3) 80<90% Ionization ?lter
Air velocity at nozzle mouth F-13 (Eu12 or H13) 99,95% Ultraviolet lamp
Preliminary cleaning ?lter contamination signalling
Main ?lter controlled by radar or manually
Protection against contamination Yes
Electrically driven sliding door
Antistatic protection 30-60 s
Operating condition signalling 400V
Door emergency unlocking push-button
Fine cleaning cycle time
Power supply
