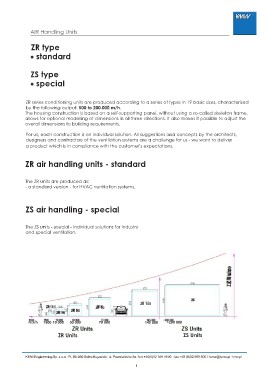

Page 2 - AIR HANDLING UNITS
P. 2

AIR Handling Units

  ZR type
    standard

  ZS type
    special

ZR series conditioning units are produced according to a series of types in 19 basic sizes, characterized
by the following output: 500 to 200.0003 m/h.
The housing construction is based on a self-supporting panel, without using a so-called skeleton frame,
allows for optional modelling of dimensions in all three directions. It also makes it possible to adjust the
overall dimensions to building requirements.
For us, each construction is an individual solution. All suggestions and concepts by the architects,
designers and contractors of the ventilation systems are a challenge for us - we want to deliver
a product which is in compliance with the customer’s expectations.

ZR air handling units - standard

The ZR units are produced as:
- a standard version - for HVAC ventilation systems.

ZS air handling - special

The ZS units - special - individual solutions for industry
and special ventilation.

                                                                             ZR Size

                                                                       ZS

              ZR 1,5                          ZR 160
                       ZR 18 ZR 30
                                    ZR 90     145 000 >200 000
m3/h 1500 10 000 30 000               70 000
                                                                   ZS Units
                ZR Units
