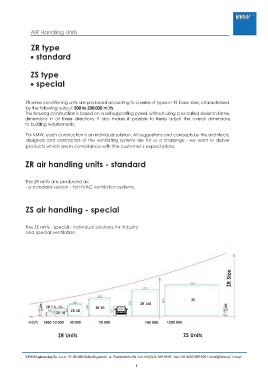

AIR Handling Units

ZR type
standard

ZS type
special

ZR series conditioning units are produced according to a series of types in 19 basic sizes, characterized
by the following output: 500 to 200.000 m3/h.
The housing construction is based on a self-supporting panel, without using a so-called skeleton fame,
dimensions in all three directions. It also makes it possible to freely adjust the overall dimensions
to building requirements.
For KMW, each construction is an individual solution. All suggestions and concepts by the architects,
designers and contractors of the ventilating systems are for us a challenge - we want to deliver
products which are in compliance with the customer’s expectations.

ZR air handling units - standard

The ZR units are produced as:
- a standard version - for HVAC ventilation systems.

ZS air handling - special

The ZS units - special - individual solutions for industry
and special ventilation.

ZR Size

ZS

ZR 1,5 ZR 160
ZR 18 ZR 30
ZR 90 145 000 >200 000
m3/h 1500 10 000 30 000 70 000
ZS Units
ZR Units
