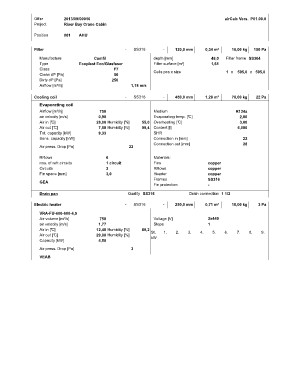

Oﬀer 2013/09/00016 airCalc Vers. P01.00.0
Project Riser Bay Crane Cabin

Position 001 AHU

Filter - SS316 - 120,0 mm 0,34 m² 16,00 kg 150 Pa
Filter frame SS304
Manufacture Camﬁl depth [mm] 48,0
Type Ecoplest Eco/Glasfaser Filter surface [m²] 1,61 1 x 595,0 x 595,0
Class Cells pcs x size
Clean dP [Pa] F7
Dirty dP [Pa] 50
Airﬂow [m³/h] 250

1,18 m/s

Cooling coil - SS316 - 450,0 mm 1,28 m² 70,00 kg 22 Pa

Evaporating coil 750 55,0 Medium R134a
Airﬂow [m³/h] 0,90 99,4 Evaporating temp. [°C] 2,00
air velocity [m/s] 28,00 Humidity [%] Overheating [°C] 3,00
Air in [°C] 7,50 Humidity [%] Content [l]
Air out [°C] 9,33 SHR 6,000
Tot. capacity [kW] Connection in [mm]
Sens. capacity [kW] 22 Connection out [mm] 22
28
Air press. Drop [Pa]

RRows 6 Materials: copper
nos. of refr.circuits 1 circuit Fins copper
Circuits 2 RRows copper
Fin space [mm] 3,0 Header SS316
Frames -
GEA Fin protection
Drain connection 1 1/2
Drain pan Quality SS316

Electric heater - SS316 - 250,0 mm 0,71 m² 18,00 kg 3 Pa

VRA-FU-600-600-4,5 750 Voltage [V] 3x440
Air volume [m³/h] 1,77
air velocity [m/s] 12,40 Humidity [%] Steps 1
Air in [°C] 29,00 Humidity [%]
Air out [°C] 4,50 89,2 St. 1. 2. 3. 4. 5. 6. 7. 8. 9.
Capacity [kW]
kW
Air press. Drop [Pa]
3
VEAB

1 2 3 4 5 6 7 8 9
